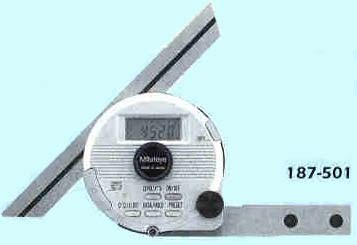

Digimatic Universal Protractor Series 187.
Features:
Data output function make it easy to see the statistical data.
Setting preset value.
Can be attached to height gauge.
Removable blade.
Product complying with the EMC Directive.
| Order No. | 187-501 | 187-502 | 187-551 | 187-552 |
| Blade Length | 150 mm | 300 mm | 150 mm | 300 mm |
| Measuring Range | - 360° to + 360° | |||
| Resolution | 1" (0.01°) | |||
| Tolerance | ±2" (± 0.03°) | |||
| Repeatability | 1" | |||
| IP | 40 | |||
| Response Speed | 3rps | |||
| Battery | Lithium battery | |||
| Battery Life | 2,000 hours | |||
| Thermal | 0°C to 40°C | |||
| Function | Zero setting, Switchable direction, Data output, Data hold, presetting, sexagestimal/decimal notation | |||
| Mass | 624g | 662g | 621g | 659g |
| Standard accessories | Battery | |||
