Bore Gages For Small Holes
Features:
Its interchangeable anvils are made of alloyed steel.
The dial indicator is fully protected by a rugged cover.
Optional Setting Rings offer the best method of zero-setting Bore Gages.
Metric:
| Range | Code No. | Indicator provided, Graduation | Probe Depth |
| 6 - 10 mm | 511-210 | 2109 FB, 0.001 mm | 47 mm |

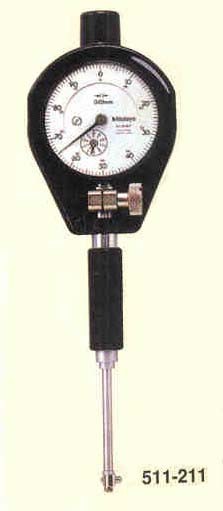

| 6 - 10 mm | 511-211 | 2046 FEB, 0.01 mm | 47 mm |
| 10 - 18.5 mm | 511-203 | 2109 FB, 0.001 mm | 100 mm |
| 10 - 18.5 mm | 511-204 | 2046 FEB, 0.01 mm | 100 mm |
Inches:
| Range | Code No. | Indicator provided, Graduation | Probe Depth |
| .24 - .4" | 511-212 | 2923 B -10, .0001" | 2" |
| .24 - .4" | 511-213 | 2922 B - 08, .0005" | 2" |
| .4 - .74" | 511-206 | 2923 B -10, .0001" | 4" |
| .4 - .74" | 511-207 | 2922 B - 08, .0005" | 4" |
