TIME Precision Measuring Instrument

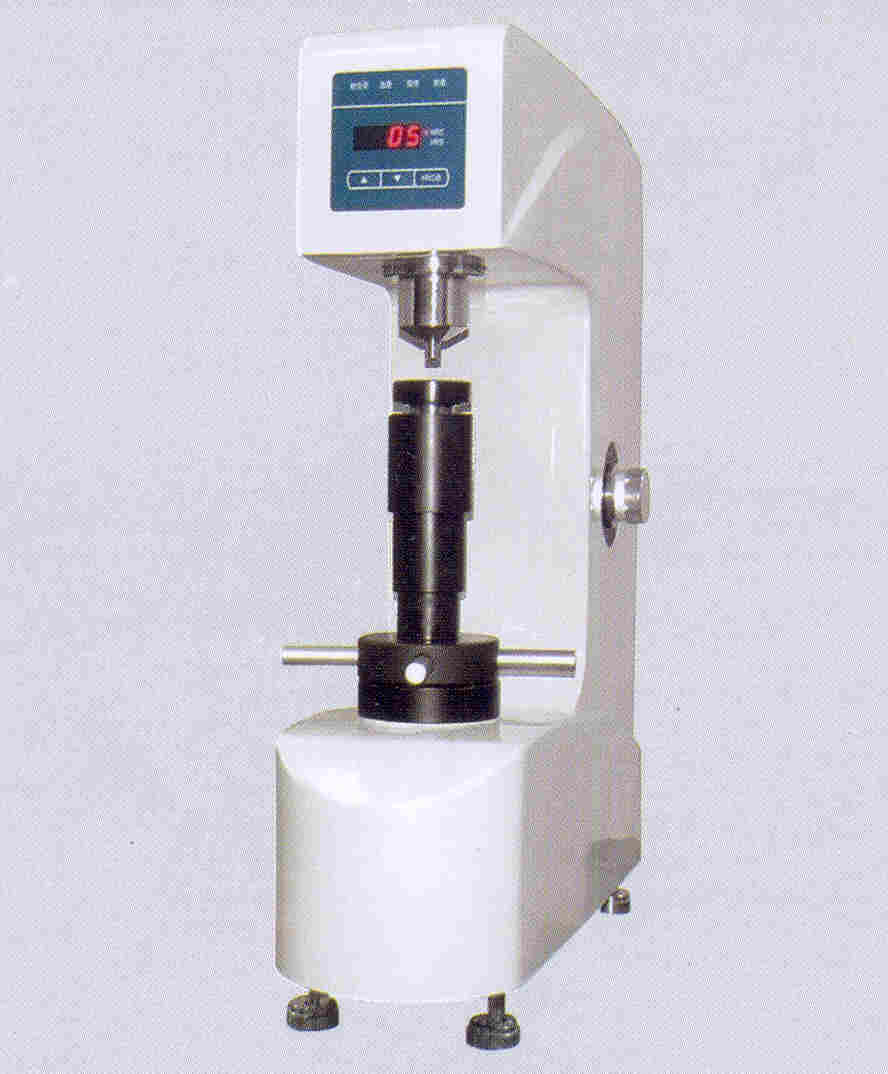

Bench [Rockwell] Hardness Tester TH550
![bench [rockwell] hardness tester TH550](../../images/TH550.jpg)
| A precise and sturdy hardness tester for checking the values in Rockwell A, B and C. This bench model is suitable for practically all metal working industries. Full functions, Easy to use and sensible price makes this Rockwell hardness tester a favorite among industries. We can also provide after sales service for the machines sold by us and a calibration certificate will be provided. For more details and commercial price on this hardness tester, please send us your e-mail and we will be touch soon. |
Features:
Operating Rockwell hardness testing of hard alloy, carbon steel, alloy steel and non-ferrous metal
High digital display resolution
Easy operation with auto loading and unloading of test force, and auto holding of test force.
Standards: BS EN ISO 6508, ISO 6598.2 and ASTM E18
Technical Specification:-
| Pre-load | 98.1N (10kgf) |
| Total load | 588.4N (60Kgf), 980.7N (100Kgf), 1471N (150Kgf) |
| Rockwell Scales | 1 ~ 100HRA, 0 ~ 130 HRB, 0 ~ 100HRC |
| Testing resolution | 0.1 Rockwell unit |
| Working method | Auto loading of main test force, auto hold and digital display of results |
| Vertical testing space | 200 mm (7.87") |
| Horizontal testing space | 160 mm (6.30") |
| Dimensions | 580 270 × 740 × mm |
| Weight | 105 kg |
Standard Delivery
Main unit 1
Test block A 1
Test block B 1
Test block C 1
1/16" (1.5875mm) ball indenter 1
1/16" (1.5875mm) spare ball 1
Diamond indenter 1
Screw for indenter 1
Flat anvil 1
Vee anvil 1
Instruction manual 1
TIME certificate 1
Warranty card 1
Optional Accessory
Ø70mm flat anvil
Ø80mm flat anvil
Ø120mm flat anvil
Ø150mm flat anvil
Ø70mm Vee anvil
Ø80mm Vee anvil
Small Vee/point anvil
Other test blocks
Download the PDF catalogue for bench type rockwell hardness tester TH 550
