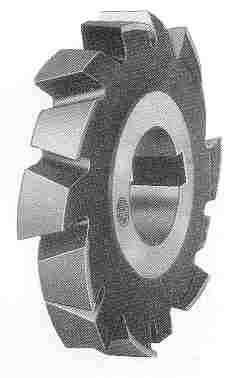

Addison Keyway Milling Cutters
 |
High Speed Steel KEYWAY MILLING CUTTERS |
Specifications Conform to IS 6355 - 1982 |
| Dimensions in mm |
| Diameter js 16 | Bore H 7 | Width d 9 |
| 50 | 16 | 5, 6, 8, 10 |
| 63 | 22 | 5, 6, 8, 10, 12, 14 |
| 80 | 27 | 5, 6, 8, 10, 12, 14, 16, 18 |
| 100 | 32 | 6, 8, 10, 12, 14, 16, 18, 20, 22, 25 |
| 125 | 32 | 8, 10, 12, 14, 16, 18, 20, 22, 25 |
| 160 | 40 | 10, 12, 14, 16, 18, 20, 22, 25, 28, 32 |
| 200 | 40 | 12, 14, 16, 18, 20, 22, 25, 28, 32, 36, 40 |
