Addison Woodruff Key Slot Milling Cutters

High Speed Steel

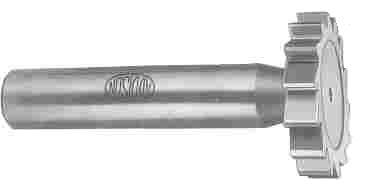

 WOODRUFF KEY SLOT  MILLING  CUTTER
Type A Straight Teeth

     Specifications Conform
to IS 2669-1971
Dimension in mm

woodruffkeyslotmillingcutters

Diameter h11 Width e8 Dia. of Shank Overall Length Woodruff Keys to IS 2294
10.5 2
2.5
3		 6.00 50 2 x 3.7
2.5 x 3.7
3 x 3.7
13.5 3
4		 10 56 3 x 5
4 x 5
13.5 3
4
5		 10 56 3 x 6.5
4 x 6.5
5 x 6.5
19.5 4
5
6		 10 56
56
63		 4 x 7.5
5 x 7.5
5 x 7.5
22.5 5
6
7		 10 63 5 x 9
6 x 9
8 x 9
25.5 6 10 63 6 x 10
28.5 6
8
10		 10
10
12		 63
63
71		 6 x 11
8 x 11
10 x 11
32.5 8
10		 10
12		 63
71		 8 x 13
10 x 13
45.5 10 12 71 10 x 16
