Addison Single Corner Rounding Cutters

High Speed Steel

SINGLE CORNER ROUNDING CUTTERS

Specifications Conform
to IS 6314 - 1982
Dimensions in mm

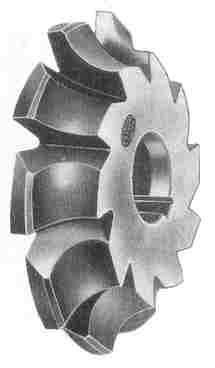

singlecornerroundingcutters

   Diameter     js 16    Bore
H 7		 Width Corner Radius
N 11
50 16 5 1.6, 2.0
63 22 5 2.5
63 22 6 3.0, 3.15
63 22 8, 10 4.0, 5.0
Diameter     js 16   Bore
H 7		 Width Corner Radius
N 11
80 27 12 6.0, 6.3
80 27 16 8.00
100 32 18 10
100 32 20 12.0, 12.5
125 32 24, 28 16.0, 20.0
